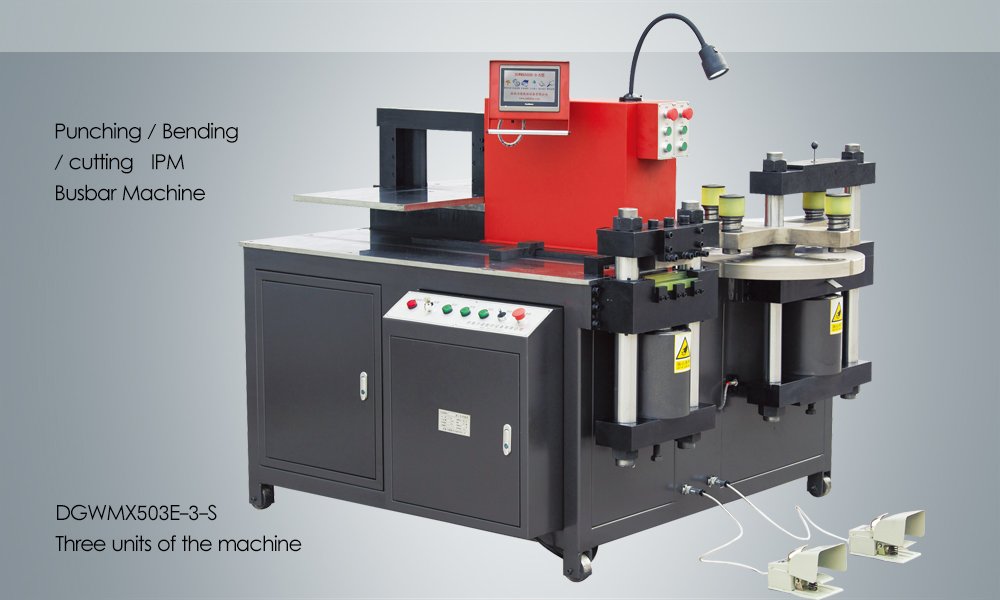

Fully-automatic Busbar Punching Bending Cutting Machine

Product Introduction:

Product details

Model: 503E-3-S

Power: 3×4Kw / 3×5.5Kw

Delivery time: 7-25 days

MOQ: 1 pcs

Certificate: ISO9001:2000/CE

Payment: T/T , L/C

Brand: LJMC

Place of region: Jinan, China

This machine is has three processing units of punching, cutting and bending. And it is designed with three independent hydraulic systems, so the punching, shearing, and bending unit can work simultaneously.

The machine realizes the automatic positioning of the three units, through the cooperates with each other of servo motor, PLC and touch screen.

Main Characters:

(1) The cutting length is automatically controlled by servo motor, the incision interface is flat, no waste, burrs and droop.

(2) No need to mark a proofing board for punching. Servo motor automatically locates punching coordinates. It supports continuous punching and punching with different apertures, and supports coordinate input and common template selection, which is convenient and efficient.

(3) The bending system automatically calculates the unrolling length of the copper busbar. High-precision screw guides control the bending length. The system has a variety of built-in bending processing templates; supports multi-segment and multi-angle continuous bending processing.

Processing units display

Cutting unit

Punching unit

Bending unit

Processing samples display
