LTMC HQ600-S-8P CNC busbar punching machine is a high-performance CNC busbar processing machine that integratespunching and shearing. TheHQ600-S-8P CNC busbar punching and shearing machine adopts a straight column mold framewith 8 punching,1 shearing to ensure the concentricity of the upper and lower dies during long-term use during processing. It isalso equipped with CNC control system and CAD/CAM system.
HQ600-S-8P CNC busbar punching machine
LTMC HQ600-S-8P CNC busbar punching machine is a high-performance CNC busbar processing machine that integrates punching and shearing. The HQ600-S-8P CNC busbar punching and shearing machine adopts a straight column mold frame with 8 punching,1 shearing to ensure the concentricity of the upper and lower dies during long-term use during processing. It is also equipped with CNC control system and CAD/CAM system, which greatly improves the production efficiency of busbar punching and shearing. Get the latest busbar punching and shearing machine prices, contact us now.
LT Busbar Machine Videos:
Infomation:
HQ600-S-8P CNC Copper busbar punching machine Specifications
| Model | HQ600-S-8P |
| Maximum Force | 600KN |
| Feeding Station Size | 3000x500mm |
| Discharge Station Size | 2500x500mm |
| Maximum Plate Size | 6000x200x15mm |
| Maximum Processing Thickness | 15mm |
| Maximum Processing Width | 200mm |
| Maximum Punching Diameter | Ø4.3-Ø55mm |
| Maximum Number of Cutting Dies | 1 |
| Maximum Number of Punching Dies | 8 |
| Max.Number of Embossing Mold | 0 |
| X-Axis Maximum Travel | 2000mm |
| X-Axis Accuracy Error | 0.10/500mm |
| Y-Axis Maximum Travel | 960mm |
| Y-Axis Accuracy Error | 0.10/500mm |
| Z-Axis Maximum Travel | 310mm |
| X-Axis Maximum Positioning Speed | 75m/min |
| Striking Cylinder Stroke | 45mm |
| Number of Control Axes | 6 |
| Dimensions (LxWxH) | 10500x2750x1800mm |
| Weight | 6700kg |
Feature:

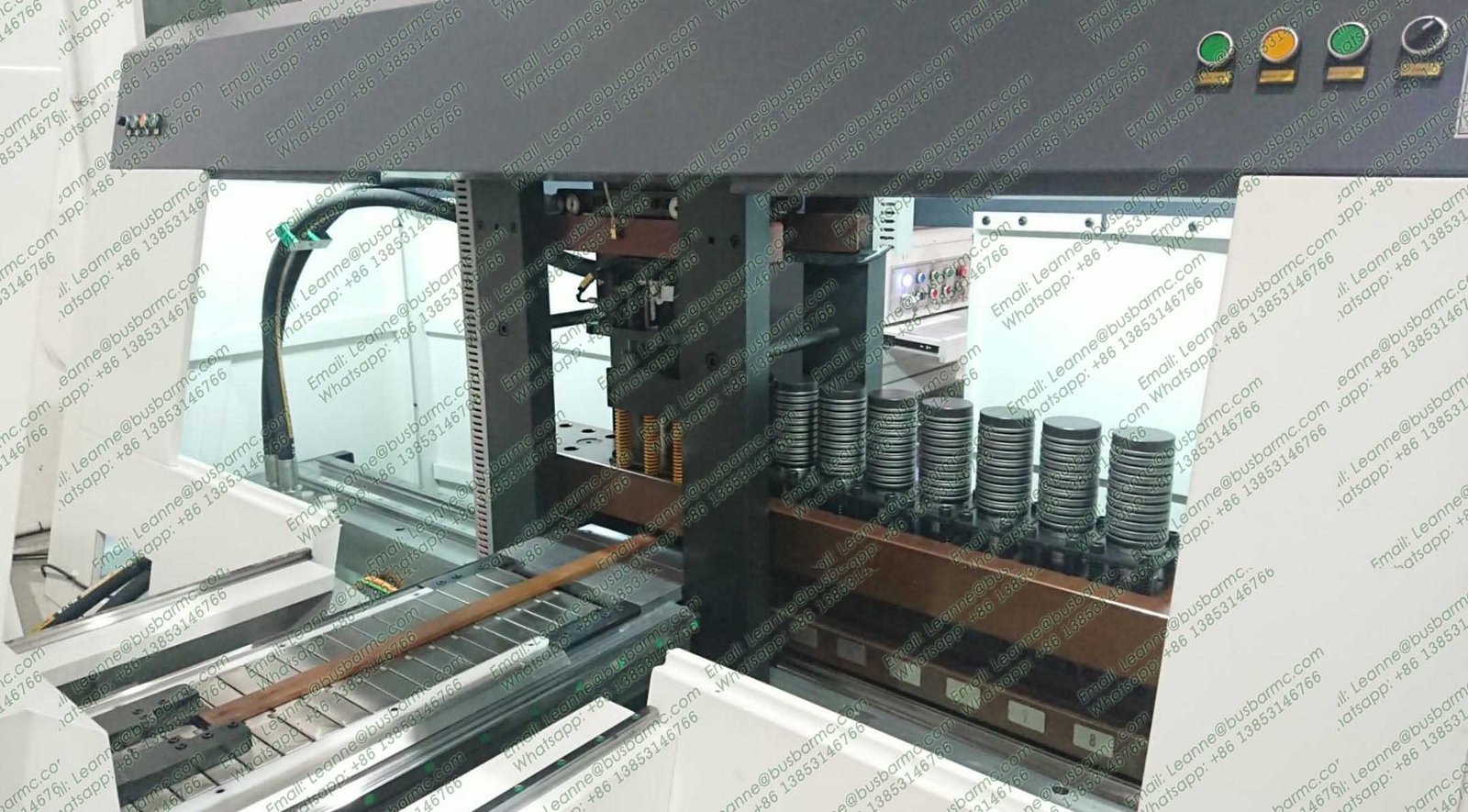

Straight column single row die library, consisting of 8 punching mold + 1 shearing mold .
Single-row die library design, with 8 punching mold + 1 shearing mold in the same row to ensure the concentricity of the punching and shearing work. While ensuring the punching and shearing efficiency (40m/min), the precision control can reach 0.1mm/500mm.
servo system is used to achieve 6-axis control, and the X-axis punching and shearing efficiency is Max 75m/min
6-axis motion system adopts 6 servo servers and 6 servo motors to drive control, with high control accuracy. Among them, the effective stroke
of the X1 servo clamp is 110mm, and the effective stroke of the X2 servo clamp is 2000mm. The X-axis motion efficiency is improved by
shortening the feed stroke and lengthening the discharge stroke. Max 75m/min (150m/min under no-load condition) in the punching
and shearing working state.
Equipped With A Swiss ABB Motor, It Supplies 600KN Hydraulic Pressure.The hydraulic station uses
Swiss ABB motor to provide 600KN hydraulic pressure, all of which is supplied to the punching and shearing unit,
effectively ensuring sufficient hydraulic pressure and punching and shearing work stability.
German Beckhoff System, German Rexroth Servo Motor And Servo Server.
German Beckhoff control system has closed-loop control, which has the advantages of high control accuracy,
strong anti-interference ability and flexible self-adaptation.
(Siemens control system has poor precision control, adopts open-loop control,
and is prone to data loss.) The equipment uses internationally renowned brand
accessories (German Rexroth), which are more stable than Chinese self-developed
brands and have lower maintenance costs.
FAQ – HQ600-S-8P CNC Busbar Punching & Shearing Machine
1. What is the HQ600-S-8P CNC busbar punching machine used for?
The HQ600-S-8P is designed for copper and aluminum busbar punching and shearing. It integrates an 8-punching mold row and 1 shearing mold, suitable for electrical switchgear, power distribution cabinets, transformer manufacturing, and industrial busbar fabrication.
2. What materials can the machine process?
The machine can process copper and aluminum busbars with a maximum size of 6000 × 200 × 15 mm.
3. What is the maximum punching diameter?
The punching diameter range is Ø4.3–Ø55 mm.
4. What is the punching and shearing accuracy?
The machine provides a positioning accuracy of 0.10/500 mm on both X and Y axes.
5. How many molds does the machine support?
The HQ600-S-8P includes 8 punching molds and 1 shearing mold in a single-row straight-column design for stable alignment.
6. What is the maximum working speed?
The X-axis maximum positioning speed is 75 m/min, and up to 150 m/min in no-load conditions.
7. What control system is used?
The machine uses a German Beckhoff CNC system with closed-loop control for stable precision. It also includes CAD/CAM support for drawing import and automatic programming.
8. What servo system does the HQ600-S-8P use?
It uses German Rexroth servo motors and servo drivers to ensure stable 6-axis control.
9. What hydraulic system is used?
The hydraulic station is equipped with a Swiss ABB motor providing 600 KN hydraulic pressure for punching and shearing operations.
10. What industries commonly use this equipment?
It is widely used in power distribution equipment manufacturing, electrical panel factories, busduct production lines, transformer workshops, and industrial electrical engineering companies.
11. Does the machine support CAD drawings?
Yes. CAD/CAM software allows DXF drawing import for automatic punching and shearing programming.
12. What is the machine size and weight?
Machine dimensions are 10500 × 2750 × 1800 mm, with a total weight of approximately 6700 kg.
13. Does the machine support automatic positioning?
Yes. The 6-axis servo system provides automatic busbar clamping, feeding, positioning, punching, and shearing.
14. What maintenance is required?
Regular maintenance includes lubrication, hydraulic oil checks, cleaning punching dies, and ensuring servo motors and clamps remain free of debris.
15. Can replacement molds and parts be supplied?
Yes. Punching dies, shearing blades, clamps, and sensors can be supplied as standard spare parts.
