HQY255-125 Busduct Busway Bridge Housing Extrusion Pressing Clamping MachineFeat
HQY255-125 Busduct Busway Bridge Housing Extrusion Pressing Clamping Machine
Features:

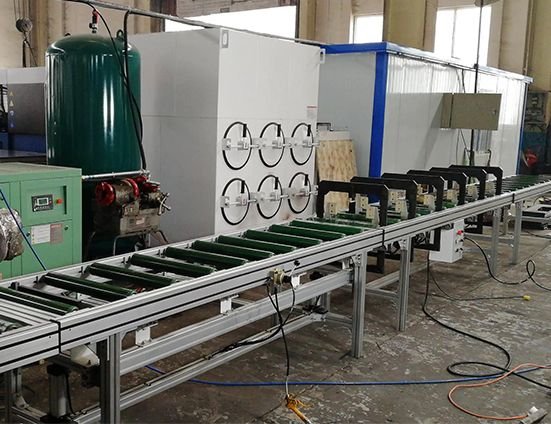

1. Use and requirements:The busbar press is equipped with three parts: riveting table, prefabricated table and discharge table. It is used for riveting assembly of busbar row of 91 ~ 255mm width and height of 125mm. After the busbar row is installed, push the riveting table and press Will be targeted after the compression to facilitate the artificial riveting.

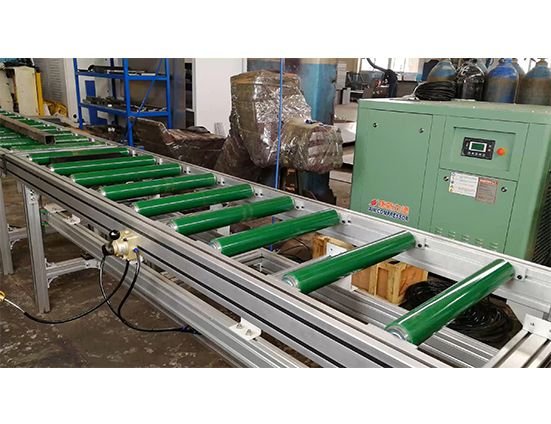

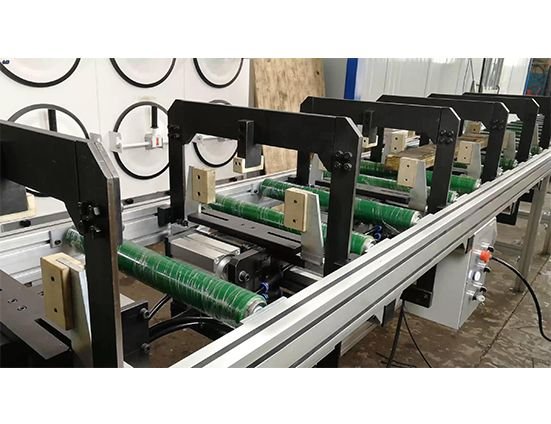

2. With relay control, pneumatic clamping, no power roller with integral installation, roller surface covered with polyurethane, to prevent scratching the bridge. The frame steel beam is formed by bending the steel plate and is supported by the steel pipe of the square pipe, which can be adjusted according to the need, the rack surface spray (gray). The upper pressing device is made of bolts with 8mm steel plate as a whole and guided by guide block. Work will be pre-installed bridge to the appropriate position, depress the foot switch, the top material device to lift the bridge from the roller in place after the remain intact, both sides of the clamping device action clamping the bridge, the last pressure Tight device action will be copper compacted. After the completion of artificial riveting, step down the foot switch, the pressure on the rise, both sides of the pressure release, the top material device down the bridge to fall back to the roller surface, the bridge pushed out to the discharge station for follow-up operation.
Bridge processing requirements:
1, the bus press for 125 × 255mm and 125X91mm between the specifications of the bridge, before the riveting clamping operation.
2, Pre-installed part of the pneumatic block on the device.
Technical support:
Busbar press machine instructions:
Including safety warning, machine principle, performance parameters, pneumatic schematic diagram, accessory table, wiring table, safe operating procedures.
HQY255-125 model in 1 busduct busway bridge housing extrusion pressing clamping machine FAQ:
Q1: What is the main function of the HQY255-125 busbar press machine?
A1: The HQY255-125 Busduct Busway Bridge Housing Extrusion Pressing Clamping Machine is designed for riveting and assembly of busbar rows with widths from 91 to 255mm and a height of 125mm, providing precise compression and support for manual riveting operations.
Q2: What are the key features of this machine?
A2: Key features include:
1. Equipped with three functional tables: riveting table, prefabricated table, and discharge table for efficient workflow.
2. Relay control and pneumatic clamping system ensure smooth operation.
3. Roller surfaces are covered with polyurethane to prevent scratches on the busbar bridge.
4. Adjustable frame made of bent steel plates supported by square steel pipes, with surface spray coating for durability.
5. Upper pressing device made of 8mm steel plate guided by guide blocks, providing stable compression during riveting.
6. Foot switch operation allows safe lifting, clamping, pressing, and releasing of busbar bridges.
Q3: What bridge specifications can this machine handle?
A3: The machine is suitable for busbar bridges with dimensions of 125 × 255mm and 125 × 91mm. Pre-installed pneumatic blocks ensure accurate clamping before riveting operations.
Q4: What technical support is provided?
A4: The HQY255-125 busbar press comes with a comprehensive instruction manual, including safety warnings, machine principles, performance parameters, pneumatic schematic diagrams, accessory tables, wiring diagrams, and safe operating procedures.
Q5: How does the machine operate during busbar assembly?
A5: After pre-installing the busbar bridge, the operator uses the foot switch to lift the top material device, clamp both sides of the bridge, and apply compression using the pressing device. Once manual riveting is complete, releasing the pressure and lowering the device returns the bridge to the roller surface, ready to be moved to the discharge station for follow-up operations.
