Best Quality Copper/Aluminum Busbar Fabrication MachineProduct Description:This
Best Quality Copper/Aluminum Busbar Fabrication Machine
Product Description:
This series three in one Best Quality Copper/Aluminum Busbar Fabrication Machine has three units: punching, shearing and bending.It is easy to adjust each unit to shorten the processing time and improve the production efficiency.
Detailed Images:
1. Cutting unit:
2. Punching unit:
3. Bending unit
Detailed Parameters:
Function | Item | 303E-3-S |
Punching | Max. Punching Force (KN) | 300 |
Punching Diameter Range (MM) | Ø4.3-Ø25 | |
Max. Thickness (MM) | 12 | |
Max. Width (MM) | 160 | |
Shearing/Cutting | Max. Shearing Thickness (MM) | 12 |
Max. Shearing Width (MM) | 160 | |
Vertical Bending | Max. Bending Force (KN) | 300 |
Max. Thickness (MM) | 12 | |
Max. Width (MM) | 160 | |
Horizontal Bending | Max. Width (MM) | 100 |
Max. Angle (Degree) | 90° | |
Out Dimension | MM | 1800*1400*1480 |
Power | KW | 3*4kw |
Weight | KG | 1420kg |
CNC Precision | Bending Precision | ±1° |
Repeat Bending Precision | ±0.3° |

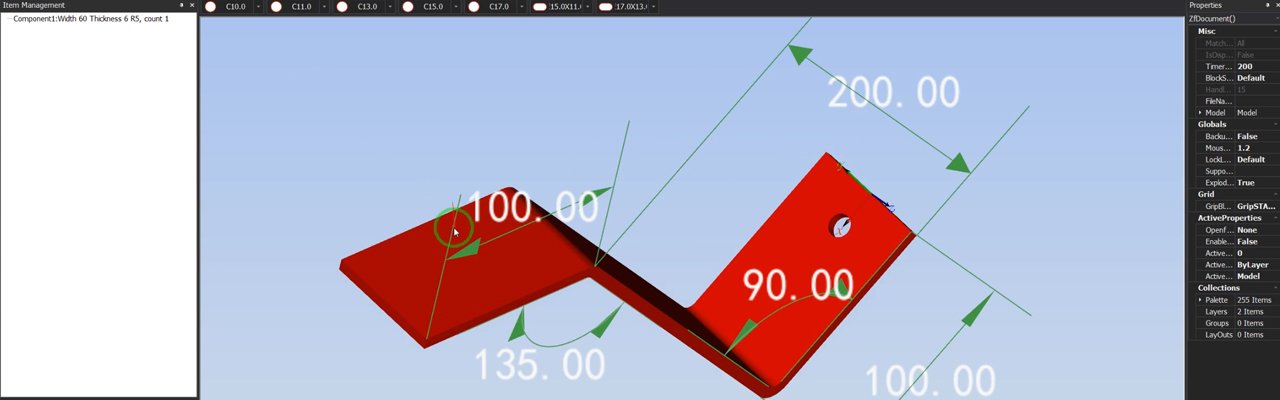

Samples of Best Quality Copper/Aluminum Busbar Fabrication Machine:

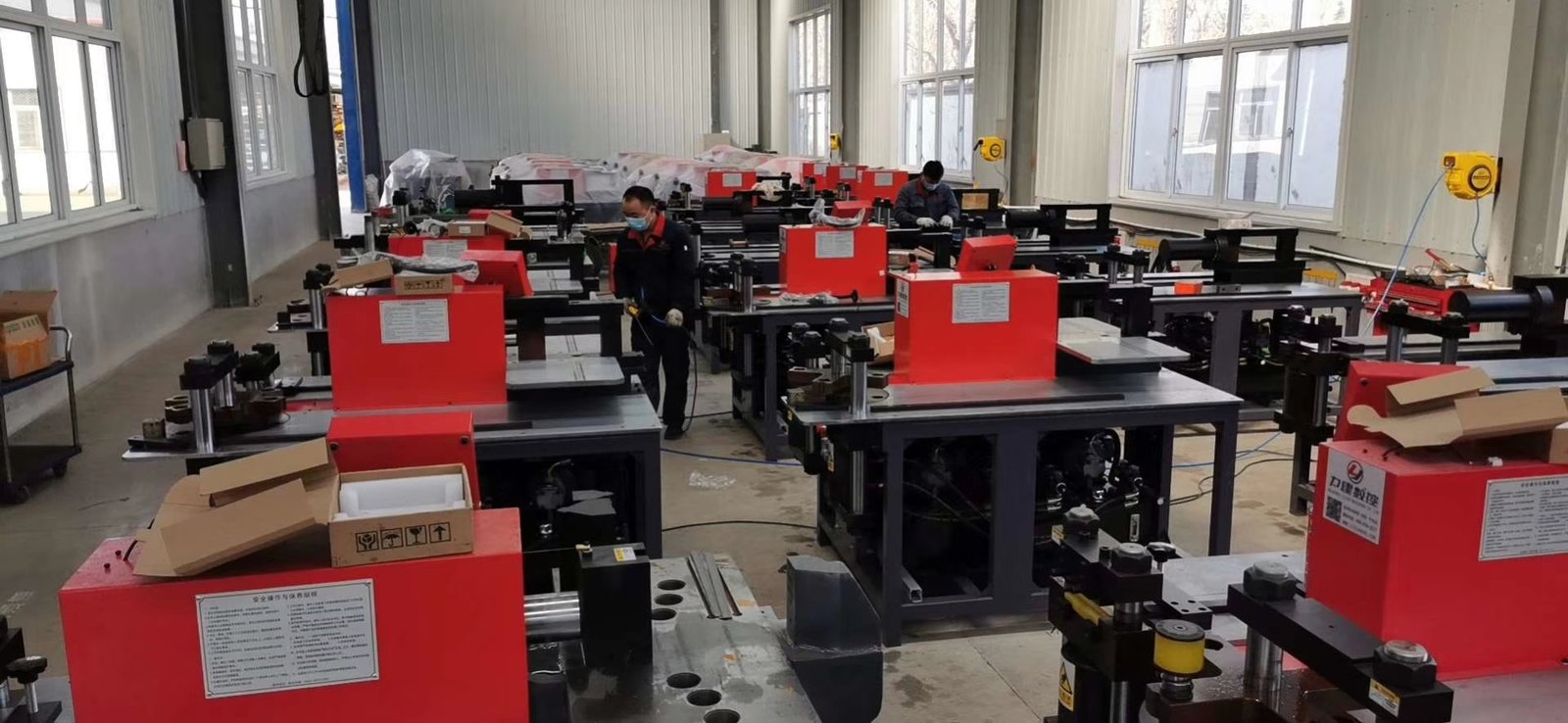

Factory:
