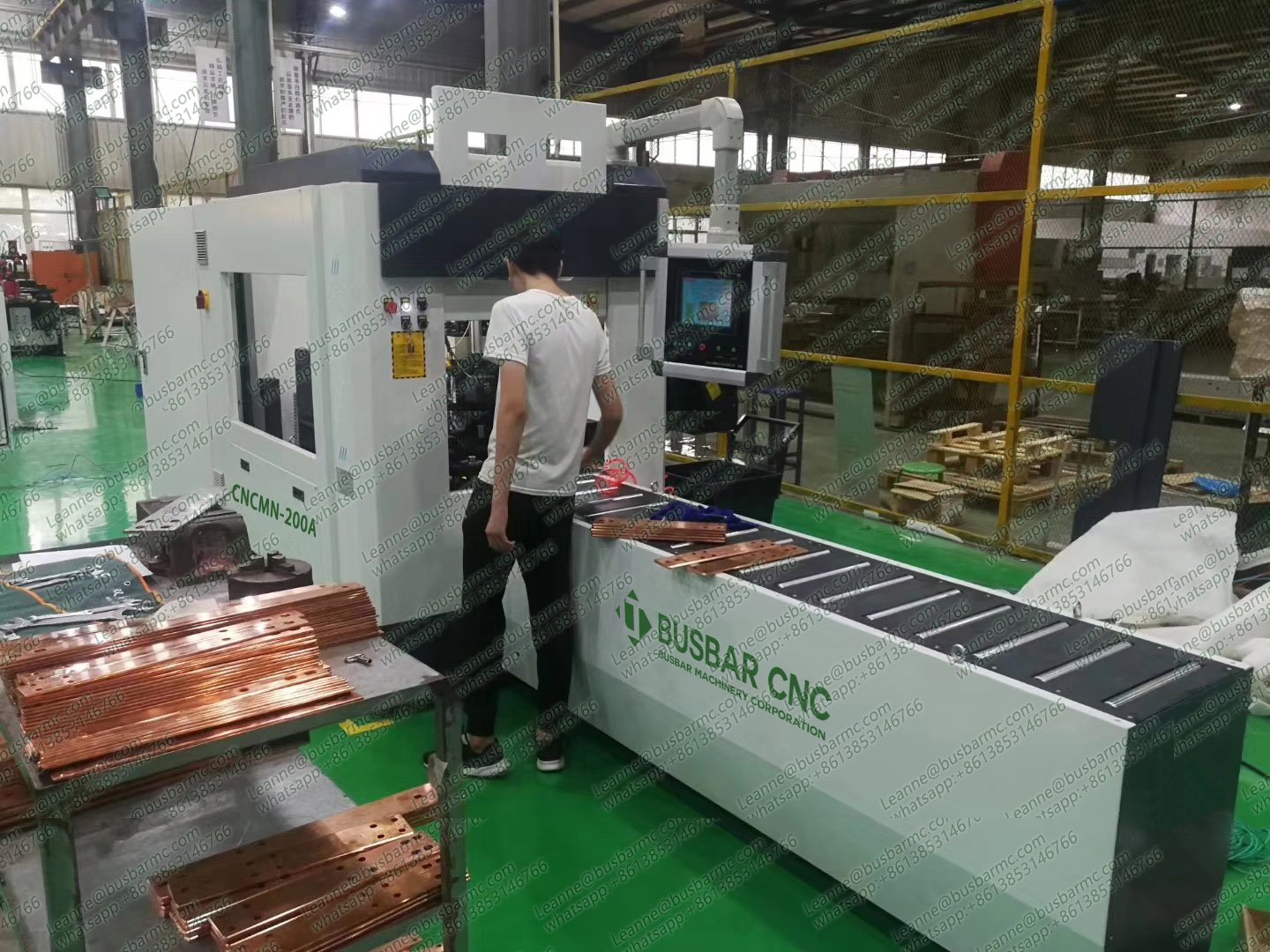

BMC CNCMN-200A CNC Copper busbar milling machine

Product :

CNC Busbar Milling Machine

Serial：CNCMN-200A

Main Function:

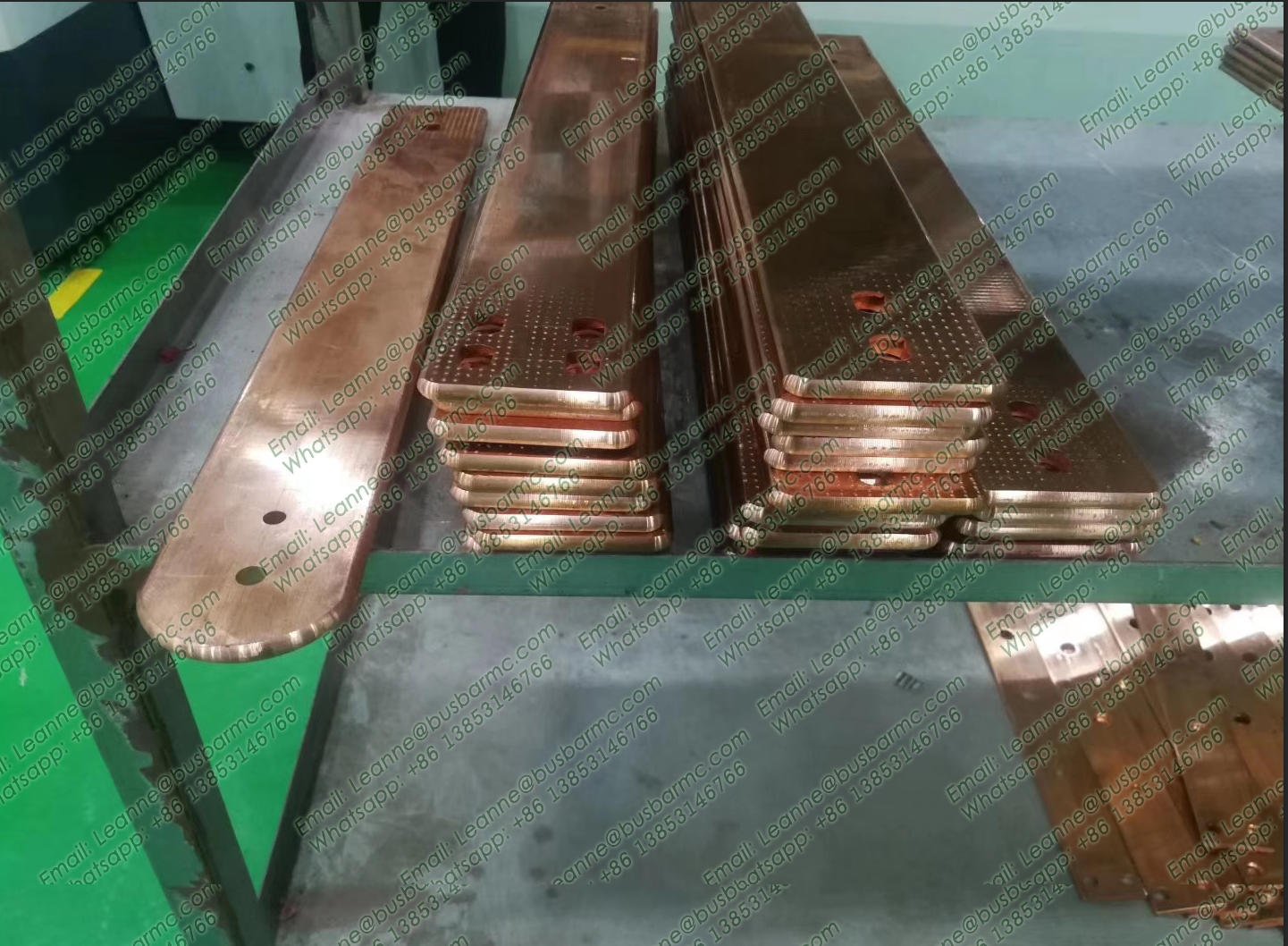

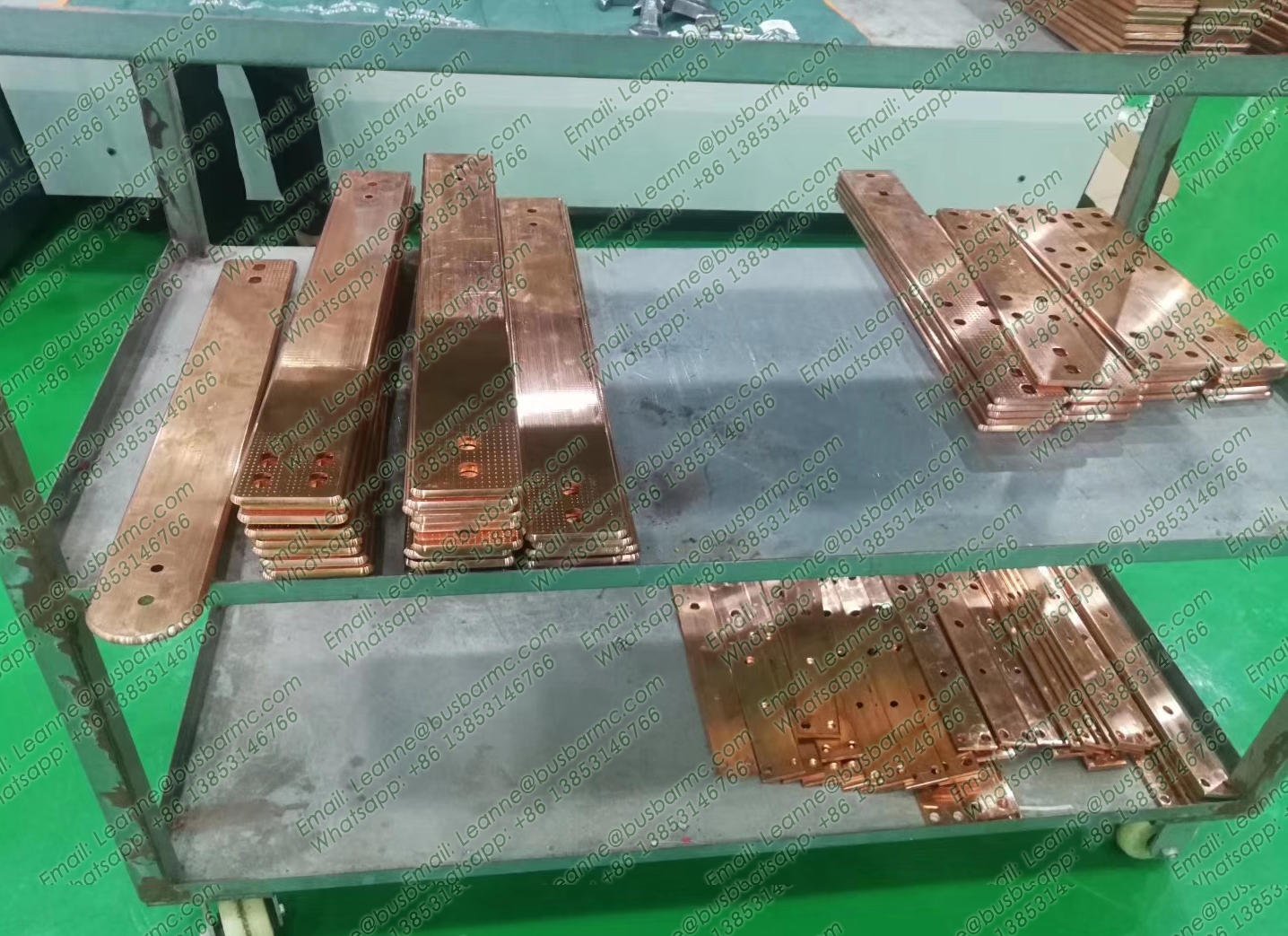

The main function of the busbar arc machining center is to mill comers (arcs) on the ends of copper

and aluminum busbars.

Main Feature:

It is mainly used for milling comner arcs on busbars with a thickness of 4-16mm, width of 30-200mm, and length of 150-6000mm.

It features a gantry-style structure, simple design, smooth operation, and good structural rigidity.

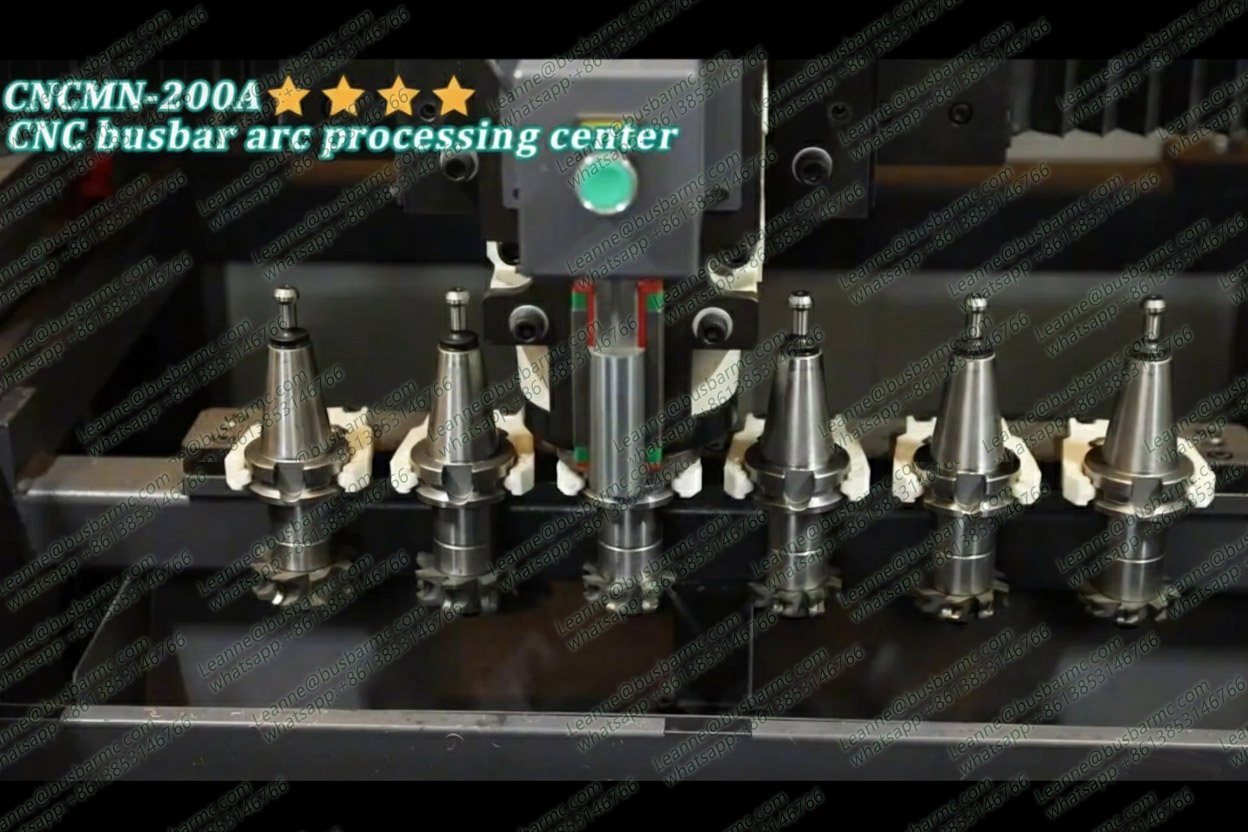

It is equipped with a six-position inline tool changer, automatically adjusting tool changes based on busbar width.

It features an automatic work hour counter that cannot be reset, along with a production counter that can be reset.

The machine uses BT40 tool holders for easy tool change, high rigidity, and precision.

A two-axis CNC system is used, offering simple operation and easy maintenance.

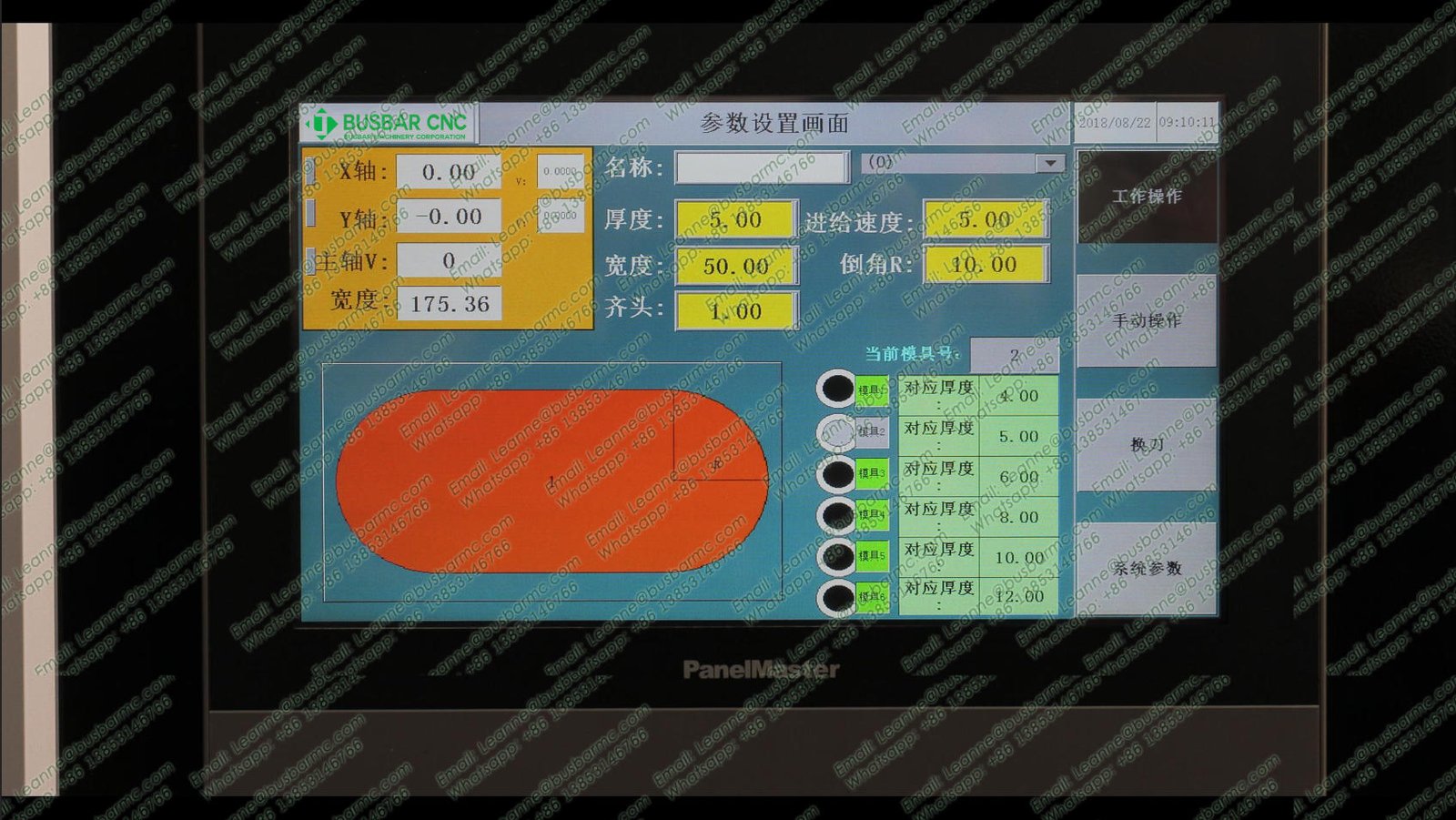

It supports simulated operation and manual online programming.

Technical Parameters:

Optional Accessories:

Video/Image:
